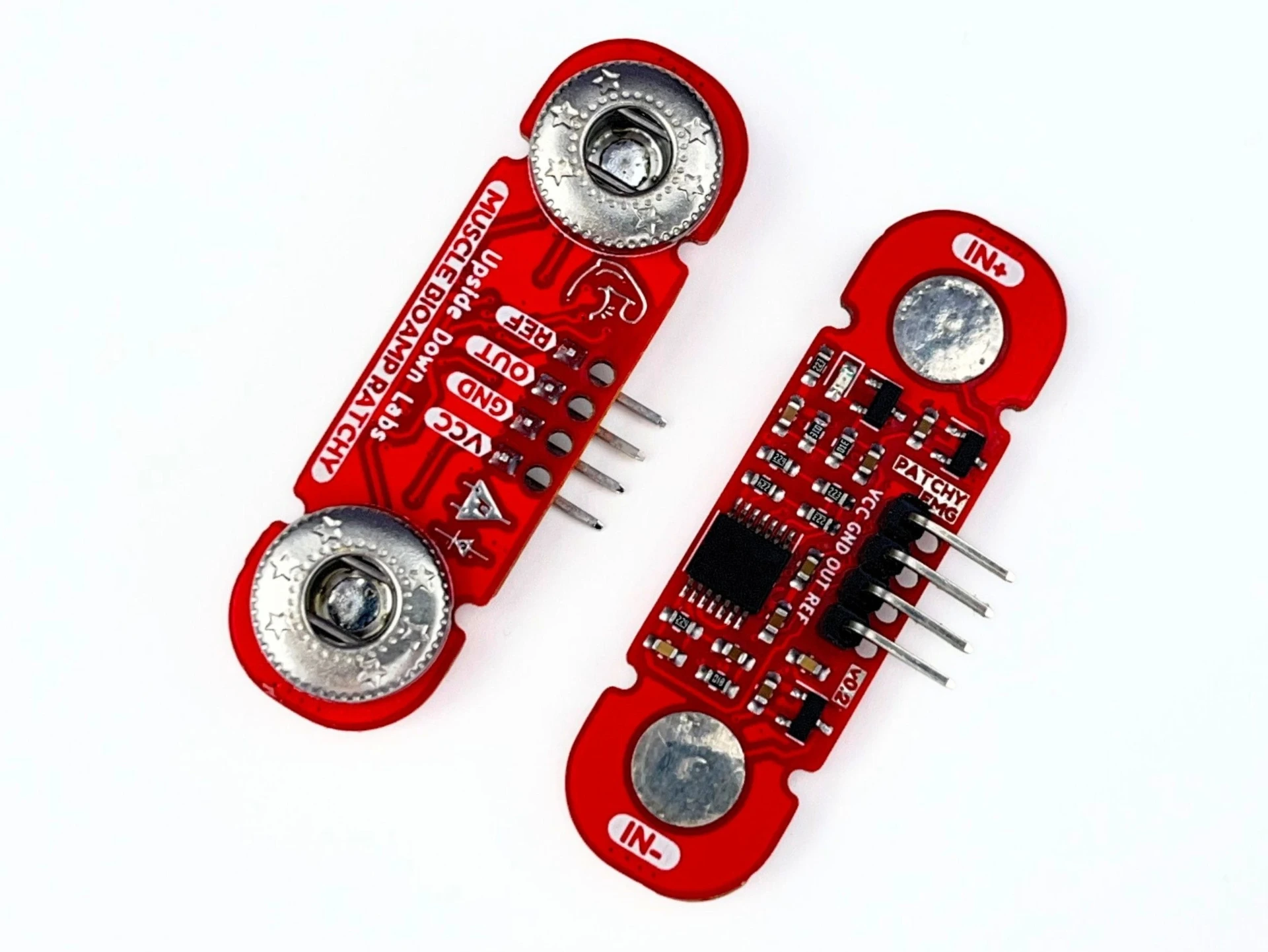

Muscle BioAmp Patchy v0.2

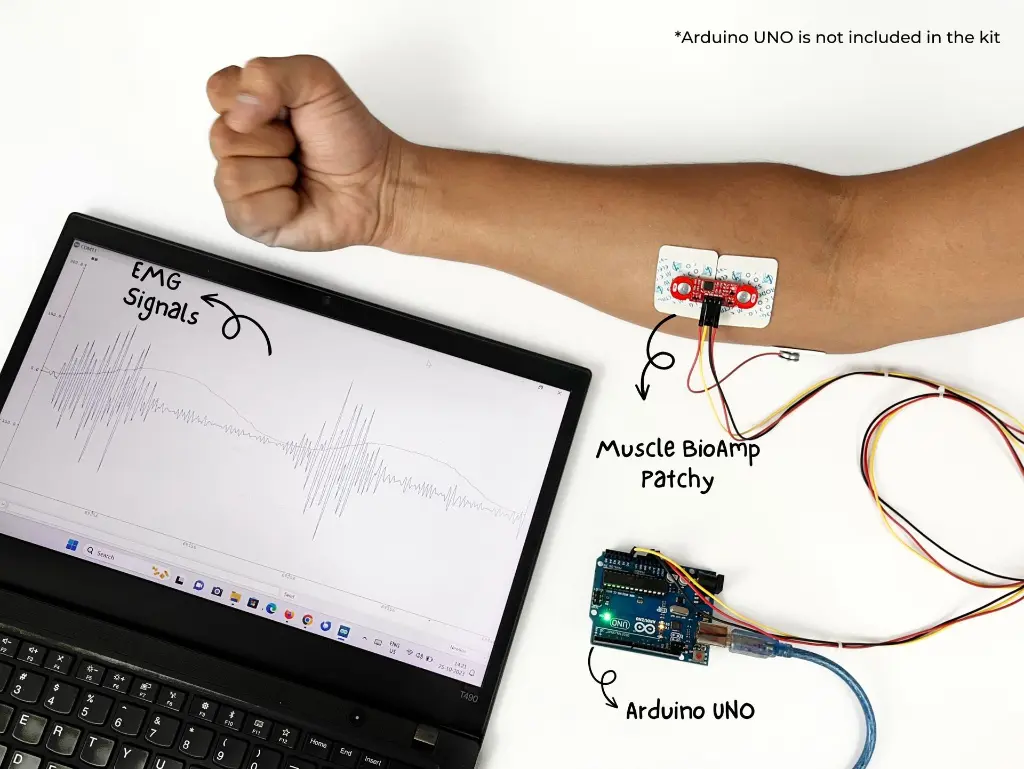

Muscle BioAmp Patchy is a small wearable muscle sensor for precise EMG sensing. The sensor can be snapped directly to the electrodes, eliminating electrode cables.
Features & Specifications:
- Minimum Input Voltage: 4.5 V
- Input Impedance: 10^12 Ω
- Fixed Gain: x2420
- Bandpass filter: 72 – 720 Hz
- Wearable: Yes
- Compatible Hardware: Any development board with an ADC (Arduino UNO & Nano, Espressif ESP32, Adafruit QtPy, STM32 Blue Pill, BeagleBone Black, Raspberry Pi Pico, to name just a few)
- BioPotentials: EMG (Electromyography)
- No. of channels: 1
- Electrodes: 3 (Positive, Negative, and Reference)
- Dimensions: 47 x 14 mm
- Open Source: Hardware + Software
Note:
- Gel electrodes should only be used once, and discarded afterward – treat them like sterile medical products!
- Muscle BioAmp Patchy includes a 3-Pin Jumper Cable (100 cm) with REF Cable. Get an extra one from here.
- Muscle BioAmp Patchy comes with 6 gel electrodes but you can easily buy them online either from us or any other vendor.
- BioAmp Accessories Kit is free till the stock last.
$ 20.75
$ 20.75
